BigGANで実験してみた!!【図解速習DeepLearning】#011

こんにちは!こーたろーです。

昨日の投稿では、【図解速習DEEP LEARNING】のGANで、高精細画像生成に取り組みました。


BigGANでは、本物の画像と偽物の画像を識別する「識別機:Discriminator」と与えられたデータから、学習データの分布を学習し、リアルな画像を生成する「生成器:Generator」から成ります。

今回は、BigGANでちょっとした実験を行っていきたいと思います。




1.必要なライブラリーのインポート

from IPython import display
import numpy as np
from scipy.stats import truncnorm
import tensorflow as tf
import tensorflow_hub as hub
import matplotlib.pyplot as plt

tf.compat.v1.disable_eager_execution()

2.TF_HubからGigGANのモデルを取得


今回は、「3)BigGAN-512」を使用してみます。

tf.compat.v1.reset_default_graph()
model_size = "3)biggan-512" #@param ["1)biggan-128" , "2)biggan-256" , "3)biggan-512"]
which_model = model_size.split(')')[1]
module_path = 'https://tfhub.dev/deepmind/'+which_model+'/2'
module = hub.Module(module_path)

f:id:dsf-kotaro:20210206172530p:plain


モデルの入出力を確認していきます。

inputs = {k: tf.compat.v1.placeholder(v.dtype, v.get_shape().as_list(), k)
          for k, v in module.get_input_info_dict().items()}
output = module(inputs)

print ('Inputs:\n', '\n'.join(
        '{}: {}'.format(*kv) for kv in inputs.items()))

print ('Output:', output)


f:id:dsf-kotaro:20210206172617p:plain


サンプリングするレベルの数と潜在空間のサイズzと変数定義していきます。
潜在空間について、述べていませんでしたが、この「潜在空間」とは、学習させた画像の特徴量の分布のことです。
この特徴量を意図的に変化させることによって、思った通りに変化させた画像を生成させることができます。

vocab_size = inputs['y'].get_shape().as_list()[1]
latent_size = inputs['z'].get_shape().as_list()[1]

print('Number of labels ', vocab_size)
print('The size of the latent space ', latent_size)


f:id:dsf-kotaro:20210206172713p:plain


このモデルにおいては、ラベル入力を1つのワンホットベクトルとして受け取ります。対応するクラス以外はすべて0の行列ベクトルとしてマッピングしていきます。

ワンホットベクトルを作成していきます。

def one_hot(index, vocab_size=1000):
  index = np.asarray(index)
  if len(index.shape) == 0:
    index = np.asarray([index])
  assert len(index.shape) == 1
  num = index.shape[0]
  output = np.zeros((num, vocab_size), dtype=np.float32)
  output[np.arange(num), index] = 1
  return output


ワンホットエンコーディングの関数を定義します。

def get_zy(index, trunc = 1., batch_size = 1, seed = None):
  y = one_hot(index)
  z = truncnorm.rvs(-2, 2, size=(batch_size, latent_size), random_state = np.random.RandomState(seed)) * trunc
  return z, y
z, _ = get_zy(np.random.choice(range(0, vocab_size), size = 1),  seed = 2)

y = np.linspace(0, latent_size, latent_size)

plt.scatter(y, z)
plt.show()


f:id:dsf-kotaro:20210206172821p:plain


3.モデルのテスト

inputのセッションとともに、グラフを動作させていきます。

def generate(sess, z, y, trunc = 1.):
  feed_dict = {inputs['z']: z, inputs['y']:y, inputs['truncation']: trunc}
  im = sess.run(output, feed_dict=feed_dict)

  im = np.clip(((im + 1) / 2.0) * 256, 0, 255)
  im = np.uint8(im)
  im = im.squeeze()
  return im


f:id:dsf-kotaro:20210206172925p:plain



f:id:dsf-kotaro:20210206173003p:plain


セッションを作成し、画像を生成・表示

with tf.compat.v1.Session() as sess:

  trunc = 0.02

  sess.run(tf.compat.v1.global_variables_initializer())

  category = "0) tench, Tinca tinca" #@param ["0) tench, Tinca tinca", "1) goldfish, Carassius auratus", "2) great white shark, white shark, man-eater, man-eating shark, Carcharodon carcharias", "3) tiger shark, Galeocerdo cuvieri", "4) hammerhead, hammerhead shark", "5) electric ray, crampfish, numbfish, torpedo", "6) stingray", "7) cock", "8) hen", "9) ostrich, Struthio camelus", "10) brambling, Fringilla montifringilla", "11) goldfinch, Carduelis carduelis", "12) house finch, linnet, Carpodacus mexicanus", "13) junco, snowbird", "14) indigo bunting, indigo finch, indigo bird, Passerina cyanea", "15) robin, American robin, Turdus migratorius", "16) bulbul", "17) jay", "18) magpie", "19) chickadee", "20) water ouzel, dipper", "21) kite", "22) bald eagle, American eagle, Haliaeetus leucocephalus", "23) vulture", "24) great grey owl, great gray owl, Strix nebulosa", "25) European fire salamander, Salamandra salamandra", "26) common newt, Triturus vulgaris", "27) eft", "28) spotted salamander, Ambystoma maculatum", "29) axolotl, mud puppy, Ambystoma mexicanum", "30) bullfrog, Rana catesbeiana", "31) tree frog, tree-frog", "32) tailed frog, bell toad, ribbed toad, tailed toad, Ascaphus trui", "33) loggerhead, loggerhead turtle, Caretta caretta", "34) leatherback turtle, leatherback, leathery turtle, Dermochelys coriacea", "35) mud turtle", "36) terrapin", "37) box turtle, box tortoise", "38) banded gecko", "39) common iguana, iguana, Iguana iguana", "40) American chameleon, anole, Anolis carolinensis", "41) whiptail, whiptail lizard", "42) agama", "43) frilled lizard, Chlamydosaurus kingi", "44) alligator lizard", "45) Gila monster, Heloderma suspectum", "46) green lizard, Lacerta viridis", "47) African chameleon, Chamaeleo chamaeleon", "48) Komodo dragon, Komodo lizard, dragon lizard, giant lizard, Varanus komodoensis", "49) African crocodile, Nile crocodile, Crocodylus niloticus", "50) American alligator, Alligator mississipiensis", "51) triceratops", "52) thunder snake, worm snake, Carphophis amoenus", "53) ringneck snake, ring-necked snake, ring snake", "54) hognose snake, puff adder, sand viper", "55) green snake, grass snake", "56) king snake, kingsnake", "57) garter snake, grass snake", "58) water snake", "59) vine snake", "60) night snake, Hypsiglena torquata", "61) boa constrictor, Constrictor constrictor", "62) rock python, rock snake, Python sebae", "63) Indian cobra, Naja naja", "64) green mamba", "65) sea snake", "66) horned viper, cerastes, sand viper, horned asp, Cerastes cornutus", "67) diamondback, diamondback rattlesnake, Crotalus adamanteus", "68) sidewinder, horned rattlesnake, Crotalus cerastes", "69) trilobite", "70) harvestman, daddy longlegs, Phalangium opilio", "71) scorpion", "72) black and gold garden spider, Argiope aurantia", "73) barn spider, Araneus cavaticus", "74) garden spider, Aranea diademata", "75) black widow, Latrodectus mactans", "76) tarantula", "77) wolf spider, hunting spider", "78) tick", "79) centipede", "80) black grouse", "81) ptarmigan", "82) ruffed grouse, partridge, Bonasa umbellus", "83) prairie chicken, prairie grouse, prairie fowl", "84) peacock", "85) quail", "86) partridge", "87) African grey, African gray, Psittacus erithacus", "88) macaw", "89) sulphur-crested cockatoo, Kakatoe galerita, Cacatua galerita", "90) lorikeet", "91) coucal", "92) bee eater", "93) hornbill", "94) hummingbird", "95) jacamar", "96) toucan", "97) drake", "98) red-breasted merganser, Mergus serrator", "99) goose", "100) black swan, Cygnus atratus", "101) tusker", "102) echidna, spiny anteater, anteater", "103) platypus, duckbill, duckbilled platypus, duck-billed platypus, Ornithorhynchus anatinus", "104) wallaby, brush kangaroo", "105) koala, koala bear, kangaroo bear, native bear, Phascolarctos cinereus", "106) wombat", "107) jellyfish", "108) sea anemone, anemone", "109) brain coral", "110) flatworm, platyhelminth", "111) nematode, nematode worm, roundworm", "112) conch", "113) snail", "114) slug", "115) sea slug, nudibranch", "116) chiton, coat-of-mail shell, sea cradle, polyplacophore", "117) chambered nautilus, pearly nautilus, nautilus", "118) Dungeness crab, Cancer magister", "119) rock crab, Cancer irroratus", "120) fiddler crab", "121) king crab, Alaska crab, Alaskan king crab, Alaska king crab, Paralithodes camtschatica", "122) American lobster, Northern lobster, Maine lobster, Homarus americanus", "123) spiny lobster, langouste, rock lobster, crawfish, crayfish, sea crawfish", "124) crayfish, crawfish, crawdad, crawdaddy", "125) hermit crab", "126) isopod", "127) white stork, Ciconia ciconia", "128) black stork, Ciconia nigra", "129) spoonbill", "130) flamingo", "131) little blue heron, Egretta caerulea", "132) American egret, great white heron, Egretta albus", "133) bittern", "134) crane", "135) limpkin, Aramus pictus", "136) European gallinule, Porphyrio porphyrio", "137) American coot, marsh hen, mud hen, water hen, Fulica americana", "138) bustard", "139) ruddy turnstone, Arenaria interpres", "140) red-backed sandpiper, dunlin, Erolia alpina", "141) redshank, Tringa totanus", "142) dowitcher", "143) oystercatcher, oyster catcher", "144) pelican", "145) king penguin, Aptenodytes patagonica", "146) albatross, mollymawk", "147) grey whale, gray whale, devilfish, Eschrichtius gibbosus, Eschrichtius robustus", "148) killer whale, killer, orca, grampus, sea wolf, Orcinus orca", "149) dugong, Dugong dugon", "150) sea lion", "151) Chihuahua", "152) Japanese spaniel", "153) Maltese dog, Maltese terrier, Maltese", "154) Pekinese, Pekingese, Peke", "155) Shih-Tzu", "156) Blenheim spaniel", "157) papillon", "158) toy terrier", "159) Rhodesian ridgeback", "160) Afghan hound, Afghan", "161) basset, basset hound", "162) beagle", "163) bloodhound, sleuthhound", "164) bluetick", "165) black-and-tan coonhound", "166) Walker hound, Walker foxhound", "167) English foxhound", "168) redbone", "169) borzoi, Russian wolfhound", "170) Irish wolfhound", "171) Italian greyhound", "172) whippet", "173) Ibizan hound, Ibizan Podenco", "174) Norwegian elkhound, elkhound", "175) otterhound, otter hound", "176) Saluki, gazelle hound", "177) Scottish deerhound, deerhound", "178) Weimaraner", "179) Staffordshire bullterrier, Staffordshire bull terrier", "180) American Staffordshire terrier, Staffordshire terrier, American pit bull terrier, pit bull terrier", "181) Bedlington terrier", "182) Border terrier", "183) Kerry blue terrier", "184) Irish terrier", "185) Norfolk terrier", "186) Norwich terrier", "187) Yorkshire terrier", "188) wire-haired fox terrier", "189) Lakeland terrier", "190) Sealyham terrier, Sealyham", "191) Airedale, Airedale terrier", "192) cairn, cairn terrier", "193) Australian terrier", "194) Dandie Dinmont, Dandie Dinmont terrier", "195) Boston bull, Boston terrier", "196) miniature schnauzer", "197) giant schnauzer", "198) standard schnauzer", "199) Scotch terrier, Scottish terrier, Scottie", "200) Tibetan terrier, chrysanthemum dog", "201) silky terrier, Sydney silky", "202) soft-coated wheaten terrier", "203) West Highland white terrier", "204) Lhasa, Lhasa apso", "205) flat-coated retriever", "206) curly-coated retriever", "207) golden retriever", "208) Labrador retriever", "209) Chesapeake Bay retriever", "210) German short-haired pointer", "211) vizsla, Hungarian pointer", "212) English setter", "213) Irish setter, red setter", "214) Gordon setter", "215) Brittany spaniel", "216) clumber, clumber spaniel", "217) English springer, English springer spaniel", "218) Welsh springer spaniel", "219) cocker spaniel, English cocker spaniel, cocker", "220) Sussex spaniel", "221) Irish water spaniel", "222) kuvasz", "223) schipperke", "224) groenendael", "225) malinois", "226) briard", "227) kelpie", "228) komondor", "229) Old English sheepdog, bobtail", "230) Shetland sheepdog, Shetland sheep dog, Shetland", "231) collie", "232) Border collie", "233) Bouvier des Flandres, Bouviers des Flandres", "234) Rottweiler", "235) German shepherd, German shepherd dog, German police dog, alsatian", "236) Doberman, Doberman pinscher", "237) miniature pinscher", "238) Greater Swiss Mountain dog", "239) Bernese mountain dog", "240) Appenzeller", "241) EntleBucher", "242) boxer", "243) bull mastiff", "244) Tibetan mastiff", "245) French bulldog", "246) Great Dane", "247) Saint Bernard, St Bernard", "248) Eskimo dog, husky", "249) malamute, malemute, Alaskan malamute", "250) Siberian husky", "251) dalmatian, coach dog, carriage dog", "252) affenpinscher, monkey pinscher, monkey dog", "253) basenji", "254) pug, pug-dog", "255) Leonberg", "256) Newfoundland, Newfoundland dog", "257) Great Pyrenees", "258) Samoyed, Samoyede", "259) Pomeranian", "260) chow, chow chow", "261) keeshond", "262) Brabancon griffon", "263) Pembroke, Pembroke Welsh corgi", "264) Cardigan, Cardigan Welsh corgi", "265) toy poodle", "266) miniature poodle", "267) standard poodle", "268) Mexican hairless", "269) timber wolf, grey wolf, gray wolf, Canis lupus", "270) white wolf, Arctic wolf, Canis lupus tundrarum", "271) red wolf, maned wolf, Canis rufus, Canis niger", "272) coyote, prairie wolf, brush wolf, Canis latrans", "273) dingo, warrigal, warragal, Canis dingo", "274) dhole, Cuon alpinus", "275) African hunting dog, hyena dog, Cape hunting dog, Lycaon pictus", "276) hyena, hyaena", "277) red fox, Vulpes vulpes", "278) kit fox, Vulpes macrotis", "279) Arctic fox, white fox, Alopex lagopus", "280) grey fox, gray fox, Urocyon cinereoargenteus", "281) tabby, tabby cat", "282) tiger cat", "283) Persian cat", "284) Siamese cat, Siamese", "285) Egyptian cat", "286) cougar, puma, catamount, mountain lion, painter, panther, Felis concolor", "287) lynx, catamount", "288) leopard, Panthera pardus", "289) snow leopard, ounce, Panthera uncia", "290) jaguar, panther, Panthera onca, Felis onca", "291) lion, king of beasts, Panthera leo", "292) tiger, Panthera tigris", "293) cheetah, chetah, Acinonyx jubatus", "294) brown bear, bruin, Ursus arctos", "295) American black bear, black bear, Ursus americanus, Euarctos americanus", "296) ice bear, polar bear, Ursus Maritimus, Thalarctos maritimus", "297) sloth bear, Melursus ursinus, Ursus ursinus", "298) mongoose", "299) meerkat, mierkat", "300) tiger beetle", "301) ladybug, ladybeetle, lady beetle, ladybird, ladybird beetle", "302) ground beetle, carabid beetle", "303) long-horned beetle, longicorn, longicorn beetle", "304) leaf beetle, chrysomelid", "305) dung beetle", "306) rhinoceros beetle", "307) weevil", "308) fly", "309) bee", "310) ant, emmet, pismire", "311) grasshopper, hopper", "312) cricket", "313) walking stick, walkingstick, stick insect", "314) cockroach, roach", "315) mantis, mantid", "316) cicada, cicala", "317) leafhopper", "318) lacewing, lacewing fly", "319) dragonfly, darning needle, devil's darning needle, sewing needle, snake feeder, snake doctor, mosquito hawk, skeeter hawk", "320) damselfly", "321) admiral", "322) ringlet, ringlet butterfly", "323) monarch, monarch butterfly, milkweed butterfly, Danaus plexippus", "324) cabbage butterfly", "325) sulphur butterfly, sulfur butterfly", "326) lycaenid, lycaenid butterfly", "327) starfish, sea star", "328) sea urchin", "329) sea cucumber, holothurian", "330) wood rabbit, cottontail, cottontail rabbit", "331) hare", "332) Angora, Angora rabbit", "333) hamster", "334) porcupine, hedgehog", "335) fox squirrel, eastern fox squirrel, Sciurus niger", "336) marmot", "337) beaver", "338) guinea pig, Cavia cobaya", "339) sorrel", "340) zebra", "341) hog, pig, grunter, squealer, Sus scrofa", "342) wild boar, boar, Sus scrofa", "343) warthog", "344) hippopotamus, hippo, river horse, Hippopotamus amphibius", "345) ox", "346) water buffalo, water ox, Asiatic buffalo, Bubalus bubalis", "347) bison", "348) ram, tup", "349) bighorn, bighorn sheep, cimarron, Rocky Mountain bighorn, Rocky Mountain sheep, Ovis canadensis", "350) ibex, Capra ibex", "351) hartebeest", "352) impala, Aepyceros melampus", "353) gazelle", "354) Arabian camel, dromedary, Camelus dromedarius", "355) llama", "356) weasel", "357) mink", "358) polecat, fitch, foulmart, foumart, Mustela putorius", "359) black-footed ferret, ferret, Mustela nigripes", "360) otter", "361) skunk, polecat, wood pussy", "362) badger", "363) armadillo", "364) three-toed sloth, ai, Bradypus tridactylus", "365) orangutan, orang, orangutang, Pongo pygmaeus", "366) gorilla, Gorilla gorilla", "367) chimpanzee, chimp, Pan troglodytes", "368) gibbon, Hylobates lar", "369) siamang, Hylobates syndactylus, Symphalangus syndactylus", "370) guenon, guenon monkey", "371) patas, hussar monkey, Erythrocebus patas", "372) baboon", "373) macaque", "374) langur", "375) colobus, colobus monkey", "376) proboscis monkey, Nasalis larvatus", "377) marmoset", "378) capuchin, ringtail, Cebus capucinus", "379) howler monkey, howler", "380) titi, titi monkey", "381) spider monkey, Ateles geoffroyi", "382) squirrel monkey, Saimiri sciureus", "383) Madagascar cat, ring-tailed lemur, Lemur catta", "384) indri, indris, Indri indri, Indri brevicaudatus", "385) Indian elephant, Elephas maximus", "386) African elephant, Loxodonta africana", "387) lesser panda, red panda, panda, bear cat, cat bear, Ailurus fulgens", "388) giant panda, panda, panda bear, coon bear, Ailuropoda melanoleuca", "389) barracouta, snoek", "390) eel", "391) coho, cohoe, coho salmon, blue jack, silver salmon, Oncorhynchus kisutch", "392) rock beauty, Holocanthus tricolor", "393) anemone fish", "394) sturgeon", "395) gar, garfish, garpike, billfish, Lepisosteus osseus", "396) lionfish", "397) puffer, pufferfish, blowfish, globefish", "398) abacus", "399) abaya", "400) academic gown, academic robe, judge's robe", "401) accordion, piano accordion, squeeze box", "402) acoustic guitar", "403) aircraft carrier, carrier, flattop, attack aircraft carrier", "404) airliner", "405) airship, dirigible", "406) altar", "407) ambulance", "408) amphibian, amphibious vehicle", "409) analog clock", "410) apiary, bee house", "411) apron", "412) ashcan, trash can, garbage can, wastebin, ash bin, ash-bin, ashbin, dustbin, trash barrel, trash bin", "413) assault rifle, assault gun", "414) backpack, back pack, knapsack, packsack, rucksack, haversack", "415) bakery, bakeshop, bakehouse", "416) balance beam, beam", "417) balloon", "418) ballpoint, ballpoint pen, ballpen, Biro", "419) Band Aid", "420) banjo", "421) bannister, banister, balustrade, balusters, handrail", "422) barbell", "423) barber chair", "424) barbershop", "425) barn", "426) barometer", "427) barrel, cask", "428) barrow, garden cart, lawn cart, wheelbarrow", "429) baseball", "430) basketball", "431) bassinet", "432) bassoon", "433) bathing cap, swimming cap", "434) bath towel", "435) bathtub, bathing tub, bath, tub", "436) beach wagon, station wagon, wagon, estate car, beach waggon, station waggon, waggon", "437) beacon, lighthouse, beacon light, pharos", "438) beaker", "439) bearskin, busby, shako", "440) beer bottle", "441) beer glass", "442) bell cote, bell cot", "443) bib", "444) bicycle-built-for-two, tandem bicycle, tandem", "445) bikini, two-piece", "446) binder, ring-binder", "447) binoculars, field glasses, opera glasses", "448) birdhouse", "449) boathouse", "450) bobsled, bobsleigh, bob", "451) bolo tie, bolo, bola tie, bola", "452) bonnet, poke bonnet", "453) bookcase", "454) bookshop, bookstore, bookstall", "455) bottlecap", "456) bow", "457) bow tie, bow-tie, bowtie", "458) brass, memorial tablet, plaque", "459) brassiere, bra, bandeau", "460) breakwater, groin, groyne, mole, bulwark, seawall, jetty", "461) breastplate, aegis, egis", "462) broom", "463) bucket, pail", "464) buckle", "465) bulletproof vest", "466) bullet train, bullet", "467) butcher shop, meat market", "468) cab, hack, taxi, taxicab", "469) caldron, cauldron", "470) candle, taper, wax light", "471) cannon", "472) canoe", "473) can opener, tin opener", "474) cardigan", "475) car mirror", "476) carousel, carrousel, merry-go-round, roundabout, whirligig", "477) carpenter's kit, tool kit", "478) carton", "479) car wheel", "480) cash machine, cash dispenser, automated teller machine, automatic teller machine, automated teller, automatic teller, ATM", "481) cassette", "482) cassette player", "483) castle", "484) catamaran", "485) CD player", "486) cello, violoncello", "487) cellular telephone, cellular phone, cellphone, cell, mobile phone", "488) chain", "489) chainlink fence", "490) chain mail, ring mail, mail, chain armor, chain armour, ring armor, ring armour", "491) chain saw, chainsaw", "492) chest", "493) chiffonier, commode", "494) chime, bell, gong", "495) china cabinet, china closet", "496) Christmas stocking", "497) church, church building", "498) cinema, movie theater, movie theatre, movie house, picture palace", "499) cleaver, meat cleaver, chopper", "500) cliff dwelling", "501) cloak", "502) clog, geta, patten, sabot", "503) cocktail shaker", "504) coffee mug", "505) coffeepot", "506) coil, spiral, volute, whorl, helix", "507) combination lock", "508) computer keyboard, keypad", "509) confectionery, confectionary, candy store", "510) container ship, containership, container vessel", "511) convertible", "512) corkscrew, bottle screw", "513) cornet, horn, trumpet, trump", "514) cowboy boot", "515) cowboy hat, ten-gallon hat", "516) cradle", "517) crane", "518) crash helmet", "519) crate", "520) crib, cot", "521) Crock Pot", "522) croquet ball", "523) crutch", "524) cuirass", "525) dam, dike, dyke", "526) desk", "527) desktop computer", "528) dial telephone, dial phone", "529) diaper, nappy, napkin", "530) digital clock", "531) digital watch", "532) dining table, board", "533) dishrag, dishcloth", "534) dishwasher, dish washer, dishwashing machine", "535) disk brake, disc brake", "536) dock, dockage, docking facility", "537) dogsled, dog sled, dog sleigh", "538) dome", "539) doormat, welcome mat", "540) drilling platform, offshore rig", "541) drum, membranophone, tympan", "542) drumstick", "543) dumbbell", "544) Dutch oven", "545) electric fan, blower", "546) electric guitar", "547) electric locomotive", "548) entertainment center", "549) envelope", "550) espresso maker", "551) face powder", "552) feather boa, boa", "553) file, file cabinet, filing cabinet", "554) fireboat", "555) fire engine, fire truck", "556) fire screen, fireguard", "557) flagpole, flagstaff", "558) flute, transverse flute", "559) folding chair", "560) football helmet", "561) forklift", "562) fountain", "563) fountain pen", "564) four-poster", "565) freight car", "566) French horn, horn", "567) frying pan, frypan, skillet", "568) fur coat", "569) garbage truck, dustcart", "570) gasmask, respirator, gas helmet", "571) gas pump, gasoline pump, petrol pump, island dispenser", "572) goblet", "573) go-kart", "574) golf ball", "575) golfcart, golf cart", "576) gondola", "577) gong, tam-tam", "578) gown", "579) grand piano, grand", "580) greenhouse, nursery, glasshouse", "581) grille, radiator grille", "582) grocery store, grocery, food market, market", "583) guillotine", "584) hair slide", "585) hair spray", "586) half track", "587) hammer", "588) hamper", "589) hand blower, blow dryer, blow drier, hair dryer, hair drier", "590) hand-held computer, hand-held microcomputer", "591) handkerchief, hankie, hanky, hankey", "592) hard disc, hard disk, fixed disk", "593) harmonica, mouth organ, harp, mouth harp", "594) harp", "595) harvester, reaper", "596) hatchet", "597) holster", "598) home theater, home theatre", "599) honeycomb", "600) hook, claw", "601) hoopskirt, crinoline", "602) horizontal bar, high bar", "603) horse cart, horse-cart", "604) hourglass", "605) iPod", "606) iron, smoothing iron", "607) jack-o'-lantern", "608) jean, blue jean, denim", "609) jeep, landrover", "610) jersey, T-shirt, tee shirt", "611) jigsaw puzzle", "612) jinrikisha, ricksha, rickshaw", "613) joystick", "614) kimono", "615) knee pad", "616) knot", "617) lab coat, laboratory coat", "618) ladle", "619) lampshade, lamp shade", "620) laptop, laptop computer", "621) lawn mower, mower", "622) lens cap, lens cover", "623) letter opener, paper knife, paperknife", "624) library", "625) lifeboat", "626) lighter, light, igniter, ignitor", "627) limousine, limo", "628) liner, ocean liner", "629) lipstick, lip rouge", "630) Loafer", "631) lotion", "632) loudspeaker, speaker, speaker unit, loudspeaker system, speaker system", "633) loupe, jeweler's loupe", "634) lumbermill, sawmill", "635) magnetic compass", "636) mailbag, postbag", "637) mailbox, letter box", "638) maillot", "639) maillot, tank suit", "640) manhole cover", "641) maraca", "642) marimba, xylophone", "643) mask", "644) matchstick", "645) maypole", "646) maze, labyrinth", "647) measuring cup", "648) medicine chest, medicine cabinet", "649) megalith, megalithic structure", "650) microphone, mike", "651) microwave, microwave oven", "652) military uniform", "653) milk can", "654) minibus", "655) miniskirt, mini", "656) minivan", "657) missile", "658) mitten", "659) mixing bowl", "660) mobile home, manufactured home", "661) Model T", "662) modem", "663) monastery", "664) monitor", "665) moped", "666) mortar", "667) mortarboard", "668) mosque", "669) mosquito net", "670) motor scooter, scooter", "671) mountain bike, all-terrain bike, off-roader", "672) mountain tent", "673) mouse, computer mouse", "674) mousetrap", "675) moving van", "676) muzzle", "677) nail", "678) neck brace", "679) necklace", "680) nipple", "681) notebook, notebook computer", "682) obelisk", "683) oboe, hautboy, hautbois", "684) ocarina, sweet potato", "685) odometer, hodometer, mileometer, milometer", "686) oil filter", "687) organ, pipe organ", "688) oscilloscope, scope, cathode-ray oscilloscope, CRO", "689) overskirt", "690) oxcart", "691) oxygen mask", "692) packet", "693) paddle, boat paddle", "694) paddlewheel, paddle wheel", "695) padlock", "696) paintbrush", "697) pajama, pyjama, pj's, jammies", "698) palace", "699) panpipe, pandean pipe, syrinx", "700) paper towel", "701) parachute, chute", "702) parallel bars, bars", "703) park bench", "704) parking meter", "705) passenger car, coach, carriage", "706) patio, terrace", "707) pay-phone, pay-station", "708) pedestal, plinth, footstall", "709) pencil box, pencil case", "710) pencil sharpener", "711) perfume, essence", "712) Petri dish", "713) photocopier", "714) pick, plectrum, plectron", "715) pickelhaube", "716) picket fence, paling", "717) pickup, pickup truck", "718) pier", "719) piggy bank, penny bank", "720) pill bottle", "721) pillow", "722) ping-pong ball", "723) pinwheel", "724) pirate, pirate ship", "725) pitcher, ewer", "726) plane, carpenter's plane, woodworking plane", "727) planetarium", "728) plastic bag", "729) plate rack", "730) plow, plough", "731) plunger, plumber's helper", "732) Polaroid camera, Polaroid Land camera", "733) pole", "734) police van, police wagon, paddy wagon, patrol wagon, wagon, black Maria", "735) poncho", "736) pool table, billiard table, snooker table", "737) pop bottle, soda bottle", "738) pot, flowerpot", "739) potter's wheel", "740) power drill", "741) prayer rug, prayer mat", "742) printer", "743) prison, prison house", "744) projectile, missile", "745) projector", "746) puck, hockey puck", "747) punching bag, punch bag, punching ball, punchball", "748) purse", "749) quill, quill pen", "750) quilt, comforter, comfort, puff", "751) racer, race car, racing car", "752) racket, racquet", "753) radiator", "754) radio, wireless", "755) radio telescope, radio reflector", "756) rain barrel", "757) recreational vehicle, RV, R.V.", "758) reel", "759) reflex camera", "760) refrigerator, icebox", "761) remote control, remote", "762) restaurant, eating house, eating place, eatery", "763) revolver, six-gun, six-shooter", "764) rifle", "765) rocking chair, rocker", "766) rotisserie", "767) rubber eraser, rubber, pencil eraser", "768) rugby ball", "769) rule, ruler", "770) running shoe", "771) safe", "772) safety pin", "773) saltshaker, salt shaker", "774) sandal", "775) sarong", "776) sax, saxophone", "777) scabbard", "778) scale, weighing machine", "779) school bus", "780) schooner", "781) scoreboard", "782) screen, CRT screen", "783) screw", "784) screwdriver", "785) seat belt, seatbelt", "786) sewing machine", "787) shield, buckler", "788) shoe shop, shoe-shop, shoe store", "789) shoji", "790) shopping basket", "791) shopping cart", "792) shovel", "793) shower cap", "794) shower curtain", "795) ski", "796) ski mask", "797) sleeping bag", "798) slide rule, slipstick", "799) sliding door", "800) slot, one-armed bandit", "801) snorkel", "802) snowmobile", "803) snowplow, snowplough", "804) soap dispenser", "805) soccer ball", "806) sock", "807) solar dish, solar collector, solar furnace", "808) sombrero", "809) soup bowl", "810) space bar", "811) space heater", "812) space shuttle", "813) spatula", "814) speedboat", "815) spider web, spider's web", "816) spindle", "817) sports car, sport car", "818) spotlight, spot", "819) stage", "820) steam locomotive", "821) steel arch bridge", "822) steel drum", "823) stethoscope", "824) stole", "825) stone wall", "826) stopwatch, stop watch", "827) stove", "828) strainer", "829) streetcar, tram, tramcar, trolley, trolley car", "830) stretcher", "831) studio couch, day bed", "832) stupa, tope", "833) submarine, pigboat, sub, U-boat", "834) suit, suit of clothes", "835) sundial", "836) sunglass", "837) sunglasses, dark glasses, shades", "838) sunscreen, sunblock, sun blocker", "839) suspension bridge", "840) swab, swob, mop", "841) sweatshirt", "842) swimming trunks, bathing trunks", "843) swing", "844) switch, electric switch, electrical switch", "845) syringe", "846) table lamp", "847) tank, army tank, armored combat vehicle, armoured combat vehicle", "848) tape player", "849) teapot", "850) teddy, teddy bear", "851) television, television system", "852) tennis ball", "853) thatch, thatched roof", "854) theater curtain, theatre curtain", "855) thimble", "856) thresher, thrasher, threshing machine", "857) throne", "858) tile roof", "859) toaster", "860) tobacco shop, tobacconist shop, tobacconist", "861) toilet seat", "862) torch", "863) totem pole", "864) tow truck, tow car, wrecker", "865) toyshop", "866) tractor", "867) trailer truck, tractor trailer, trucking rig, rig, articulated lorry, semi", "868) tray", "869) trench coat", "870) tricycle, trike, velocipede", "871) trimaran", "872) tripod", "873) triumphal arch", "874) trolleybus, trolley coach, trackless trolley", "875) trombone", "876) tub, vat", "877) turnstile", "878) typewriter keyboard", "879) umbrella", "880) unicycle, monocycle", "881) upright, upright piano", "882) vacuum, vacuum cleaner", "883) vase", "884) vault", "885) velvet", "886) vending machine", "887) vestment", "888) viaduct", "889) violin, fiddle", "890) volleyball", "891) waffle iron", "892) wall clock", "893) wallet, billfold, notecase, pocketbook", "894) wardrobe, closet, press", "895) warplane, military plane", "896) washbasin, handbasin, washbowl, lavabo, wash-hand basin", "897) washer, automatic washer, washing machine", "898) water bottle", "899) water jug", "900) water tower", "901) whiskey jug", "902) whistle", "903) wig", "904) window screen", "905) window shade", "906) Windsor tie", "907) wine bottle", "908) wing", "909) wok", "910) wooden spoon", "911) wool, woolen, woollen", "912) worm fence, snake fence, snake-rail fence, Virginia fence", "913) wreck", "914) yawl", "915) yurt", "916) web site, website, internet site, site", "917) comic book", "918) crossword puzzle, crossword", "919) street sign", "920) traffic light, traffic signal, stoplight", "921) book jacket, dust cover, dust jacket, dust wrapper", "922) menu", "923) plate", "924) guacamole", "925) consomme", "926) hot pot, hotpot", "927) trifle", "928) ice cream, icecream", "929) ice lolly, lolly, lollipop, popsicle", "930) French loaf", "931) bagel, beigel", "932) pretzel", "933) cheeseburger", "934) hotdog, hot dog, red hot", "935) mashed potato", "936) head cabbage", "937) broccoli", "938) cauliflower", "939) zucchini, courgette", "940) spaghetti squash", "941) acorn squash", "942) butternut squash", "943) cucumber, cuke", "944) artichoke, globe artichoke", "945) bell pepper", "946) cardoon", "947) mushroom", "948) Granny Smith", "949) strawberry", "950) orange", "951) lemon", "952) fig", "953) pineapple, ananas", "954) banana", "955) jackfruit, jak, jack", "956) custard apple", "957) pomegranate", "958) hay", "959) carbonara", "960) chocolate sauce, chocolate syrup", "961) dough", "962) meat loaf, meatloaf", "963) pizza, pizza pie", "964) potpie", "965) burrito", "966) red wine", "967) espresso", "968) cup", "969) eggnog", "970) alp", "971) bubble", "972) cliff, drop, drop-off", "973) coral reef", "974) geyser", "975) lakeside, lakeshore", "976) promontory, headland, head, foreland", "977) sandbar, sand bar", "978) seashore, coast, seacoast, sea-coast", "979) valley, vale", "980) volcano", "981) ballplayer, baseball player", "982) groom, bridegroom", "983) scuba diver", "984) rapeseed", "985) daisy", "986) yellow lady's slipper, yellow lady-slipper, Cypripedium calceolus, Cypripedium parviflorum", "987) corn", "988) acorn", "989) hip, rose hip, rosehip", "990) buckeye, horse chestnut, conker", "991) coral fungus", "992) agaric", "993) gyromitra", "994) stinkhorn, carrion fungus", "995) earthstar", "996) hen-of-the-woods, hen of the woods, Polyporus frondosus, Grifola frondosa", "997) bolete", "998) ear, spike, capitulum", "999) toilet tissue, toilet paper, bathroom tissue"]

  index = int(category.split(')')[0])
  z, y = get_zy(index, trunc = trunc)
  im = generate(sess, z, y, trunc = trunc)

  plt.axis('off')
  plt.imshow(im)


f:id:dsf-kotaro:20210207223301p:plain


切り捨て値【truncation】については、今度解説したいと思いますが、この切り捨て値を大きくすると、サンプリングされた画像のばらつきが大きくなります。

with tf.compat.v1.Session() as sess:
  images = None
  sess.run(tf.compat.v1.global_variables_initializer())

  index = 156

  for trunc in np.linspace(0.04, 1. , 5):
    images = None

    print('truncation value ', np.round(trunc, decimals = 2))
    for i in range(0, 2):
      z, y = get_zy(index, trunc = trunc)

      im = generate(sess, z, y, trunc = trunc)

      if images is None:
        images = im
      else:
        images = np.concatenate([images, im], axis = 1)
    plt.axis('off')
    plt.imshow(images)
    plt.show()


f:id:dsf-kotaro:20210207223144p:plain


4.潜在空間の補完

2つのzベクトルをそれぞれv1、v2として、この二つのベクトルに関数で補間(移動)を掛けていく


4.1線形補間

def interpolate_linear(v1, v2, num_steps):
  vectors = []
  for x in np.linspace(0.0, 1.0, num_steps):
    vectors.append(v2*x+v1*(1-x))
  return np.array(vectors)

4.2超球面補間

def interpolate_hypersphere(v1, v2, num_steps):

  v1_norm = LA.norm(v1)
  v2_norm = LA.norm(v2)
  v2_normalized = v2 * (v1_norm / v2_norm)

  vectors = []
  for step in range(num_steps):
    interpolated = v1 + (v2_normalized - v1) * step / (num_steps - 1)
    interpolated_norm =  LA.norm(interpolated)
    interpolated_normalized = interpolated * (v1_norm / interpolated_norm)
    vectors.append(interpolated_normalized)
  return np.array(vectors)


5.GIFアニメーションで補間を確認

線形変換での補完を確認してみます。
もしも、超球面補間をやる場合は、「interpolate_linear」を「 interpolate_hypersphere()」に置き換えてみてください。

with tf.compat.v1.Session() as sess:
  num_interps = 10

  sess.run(tf.compat.v1.global_variables_initializer())
  images = []

  trunc = 0.4
  k = 91
  l = 98

  v1, y1 = get_zy(0, trunc = trunc, seed = k)
  v2, y2 = get_zy(0, trunc = trunc, seed = l)

  interps_z = interpolate_linear(v1 , v2, num_interps)
  interps_y = interpolate_linear(y1,  y2, num_interps)

  for i in range(0, num_interps):
    z = interps_z[i]
    y = interps_y[i]

    im = generate(sess, z, y, trunc = trunc)
    images.append(im.squeeze())


GIFアニメーション表示用のライブラリーをインポートします。

!pip install imageio
import imageio


f:id:dsf-kotaro:20210206175134p:plain


GiFアニメーションを表示させます。

def create_animation(images):
  imageio.mimsave('./animation.gif', images)
  with open('./animation.gif','rb') as f:
      display.display(display.Image(data=f.read(), height=512))
create_animation(images)

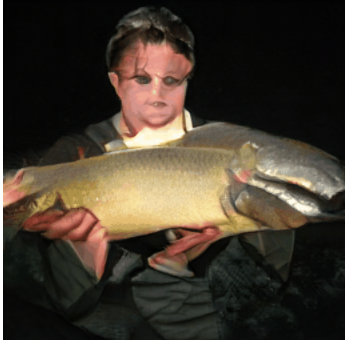

f:id:dsf-kotaro:20210207223553p:plain

※実際はGIF動画で出力されます。



【実験1】前景を保ちながら、任意の画像の背景を変更する


やり方としては、前景画像を安定させるためにsin(z)を使っていきます。
sin(x)だと、ゼロに近い値を保持しながら、ゼロではない値に変更できるため、背景が変更できます。

with tf.compat.v1.Session() as sess:
  images = None
  sess.run(tf.compat.v1.global_variables_initializer())

  trunc = 1.0

  index = 0

  z, y = get_zy(index, trunc = trunc)
  im1 = generate(sess, z, y, trunc = trunc)
  im2 = generate(sess, np.sin(z), y, trunc = trunc)

  images = np.concatenate([im1, im2], axis = 1)
  #show the image
  plt.axis('off')
  plt.imshow(images)
  plt.show()

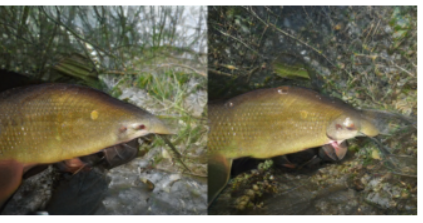

左側が変更前、右側が変更後です。
メインの魚のところの状態を殆ど変化させずに、背景を中心に変更できているのが分かります。

f:id:dsf-kotaro:20210207223748p:plain



【実験2】生成された画像の詳細確認

特定のカテゴリを詳しく確認します。

【Seed=2】の場合

with tf.compat.v1.Session() as sess:
  images = None
  sess.run(tf.compat.v1.global_variables_initializer())

  trunc = 1.0

  index = 0

  z, y = get_zy(index, seed = 2)

  im1 = generate(sess, -0.5*(z/np.abs(z)), y)
  im2 = generate(sess, -1.0*(z/np.abs(z)), y)
  im3 = generate(sess, -1.5*(z/np.abs(z)), y)


  images = np.concatenate([im1, im2, im3], axis = 1)
  plt.axis('off')
  plt.imshow(images)
  plt.show()

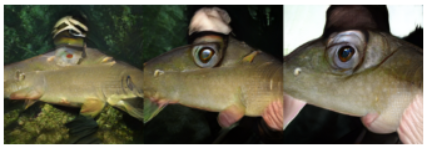

f:id:dsf-kotaro:20210207223918p:plain


【Seed=8】の場合

with tf.compat.v1.Session() as sess:
  images = None
  sess.run(tf.compat.v1.global_variables_initializer())

  trunc = 1.0

  index = 0

  z, y = get_zy(index, seed = 8)

  im1 = generate(sess, -1.0*(z/np.abs(z)), y)
  im2 = generate(sess, -1.5*(z/np.abs(z)), y)


  images = np.concatenate([im2, im1], axis = 1)
  plt.axis('off')
  plt.imshow(images)
  plt.show()


f:id:dsf-kotaro:20210207223945p:plain


こちらのSEEDは、このプログラムで用いられるオプション用のランダム変数(整数)です。
今回、潜在ベクトルの領域の切り捨てを行っているのですが、その閾値を設定するための変数設定です。
つまり、Seedを変更すると、潜在ベクトルの表現力が変化することになります。
Seed=2とSeed=8では、表現力がことなっていることが分かります。

参考図書のサンプルソース内でも記述がありますが、切り捨ての閾値をもって切り捨てを行った場合、ベクトルサンプリングの全体的な種類が減少するため、品質と多様性はトレードオフ関係にあることになります。



【実験3】二つの異なるクラス間を行き来してみる

こちらは、エンコードされたベクトルを平均して同じシードベクトルを使用するという単純な演算を行います。

with tf.compat.v1.Session() as sess:
  images = None
  sess.run(tf.compat.v1.global_variables_initializer())

  trunc = 1.0

  i1 = 0
  i2 = 1

  a = 0.5

  z, y1 = get_zy(i1)
  z, y2 = get_zy(i2)

  im1 = generate(sess, z, y1)
  im2 = generate(sess, z, y2)
  im3 = generate(sess, z, a*y1+(1-a)*y2)

  images = np.concatenate([im1, im2, im3], axis = 1)

  plt.axis('off')
  plt.imshow(images)
  plt.show()

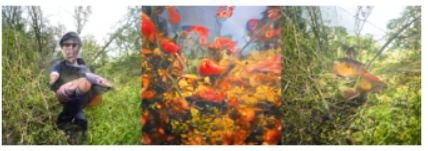

f:id:dsf-kotaro:20210207224013p:plain



本日で、この教科書の画像認識のトライアルは修了です。
次回からは自然言語処理を行っていきます。
楽しみにしていてください!

ではでは。
